INTRODUCTION
CO2 is a key factor for indoor air quality as high levels compromise human cognitive performance and well-being.

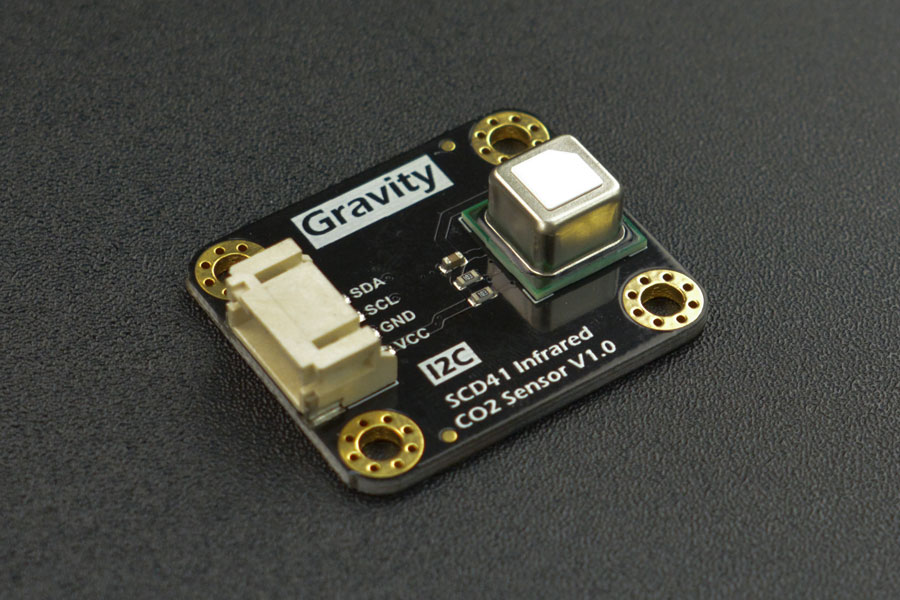

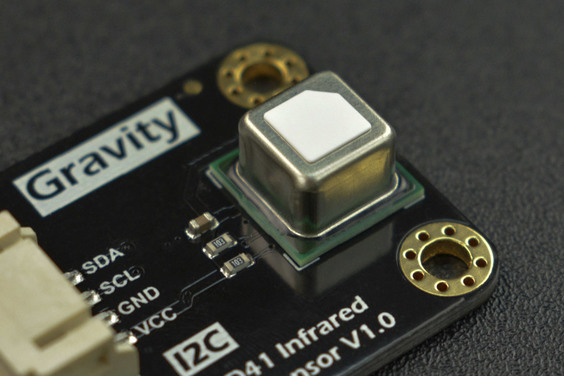

CO2 sensor is based on the SCD41 miniature CO2 sensor from Sensirion. builds on the photoacoustic NDIR sensing principle and Sensirion’s patented PAsens® and CMOSens® technology to offer high accuracy at an unmatched price and the smallest form factor. On-chip signal compensation is realized with the built-in temperature and humidity sensor, while temperature and humidity data outputs are also available.
sensor detects the amount of energy that is absorbed by CO2 molecules. When pulsing the infrared emitter, CO2 molecules absorb infrared light periodically. This causes additional molecular vibration resulting in a pressure wave inside the measurement chamber. The higher the CO2 concentration, the more light is absorbed, and thus the greater the amplitude of this acoustic wave becomes. A microphone inside the gas chamber measures this, from which the CO2 concentration can then be calculated.
FEATURES
APPLICATIONS
SPECIFICATION
CO2
Humidity
Temperature
