Online Intelligent Single Channel pH/Orp Controller (pH/ORP-6800)
รหัสสินค้า
PH/ORP-6800
Widely used for chemical, pharmaceutical, printing and dyeing, metallurgy, electronics, electroplating, environmental protection, water treatment, aquaculture and other industries process detection and control of PH/ ORP value.
ขนาดสินค้า
ความยาว: 9.60 CM ความกว้าง: 9.60 CM ความสูง: 11.00 CM
คุณสมบัติสินค้า
รุ่น:
PH/ORP-6800
ติดต่อเรา เพื่อสอบถามราคาสินค้า
รายละเอียดสินค้า
รีวิว

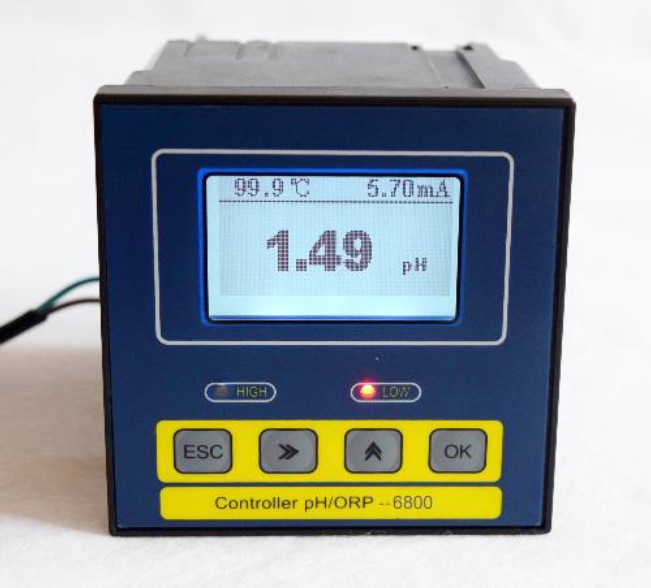

Online Intelligent single channel pH/ORP controller pH/ORP-6800

Character & Application:

  1. Intelligent industry online pH or ORP monitor/controller
  2. Three-point calibration function, automatic identification of calibration liquid and the error calibration
  3. High input impedance, programmable manual /Auto temperature compensation, the adaptation of various types of pH/ORP electrode
  4. Big screen multi-parameter LCD display function
  5. Isolation reversible Migration 4-20mA current output signal
  6. The upper limit and low limit alarm relay control output functions, alarm return difference setup by keyboard
  7. Widely used for chemical, pharmaceutical, printing and dyeing, metallurgy, electroplating, environmental protection, water treatment, aquaculture and other industries process detection and control of pH/ ORP value



Main Technique Specifications


Parameters

pH/ORP-6800 controller

Range

pH: 0.00~14.00 pH, ORP: -1200~+1200mV

Accuracy

pH: ±0.01 pH, ORP: ±1mV

Temp. Comp.

pH: The 25ºC basis, Manual/Auto temperature compensation
Operation Temp.
0~60ºC with standard temperature sensor
60ºC~100ºC with high temperature sensor


Sensor

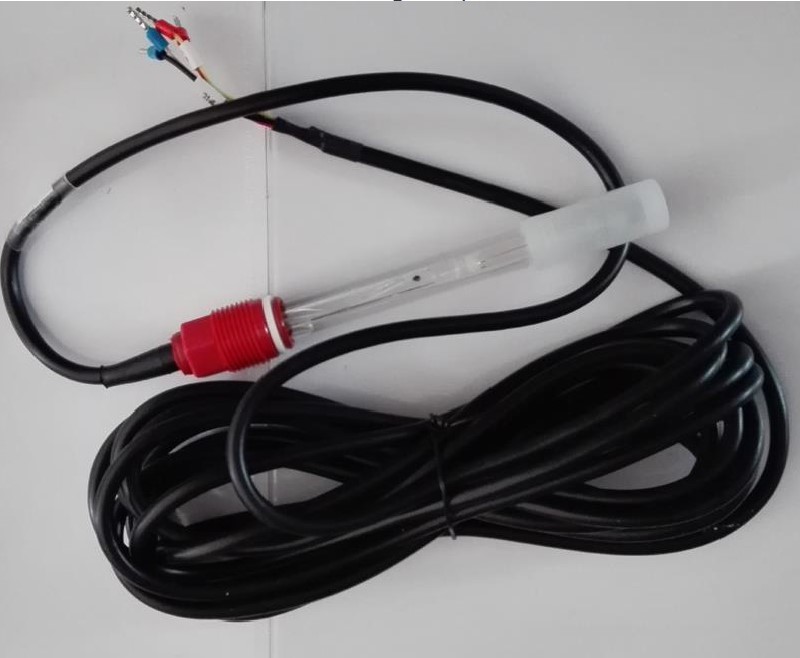

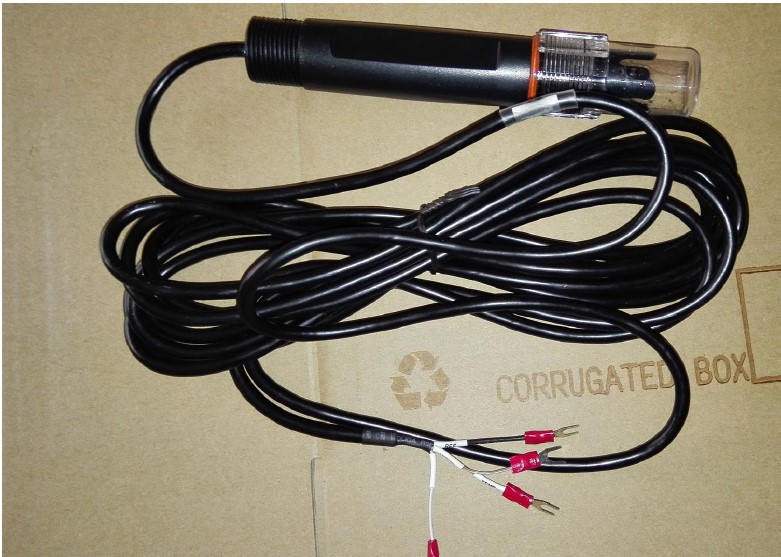

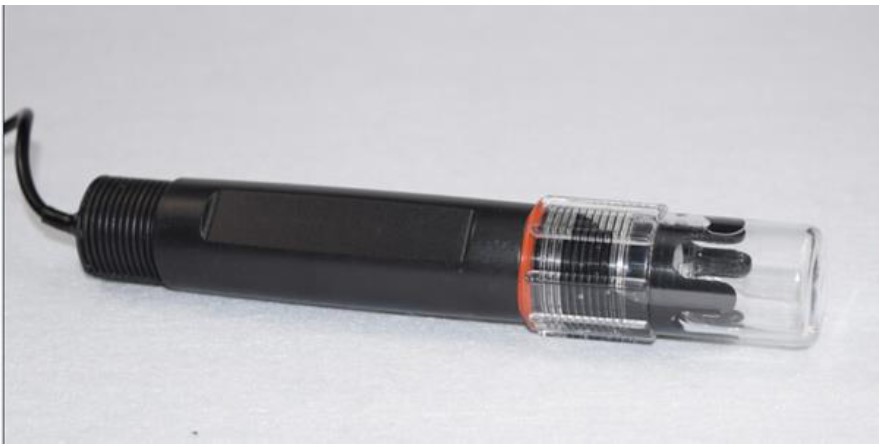

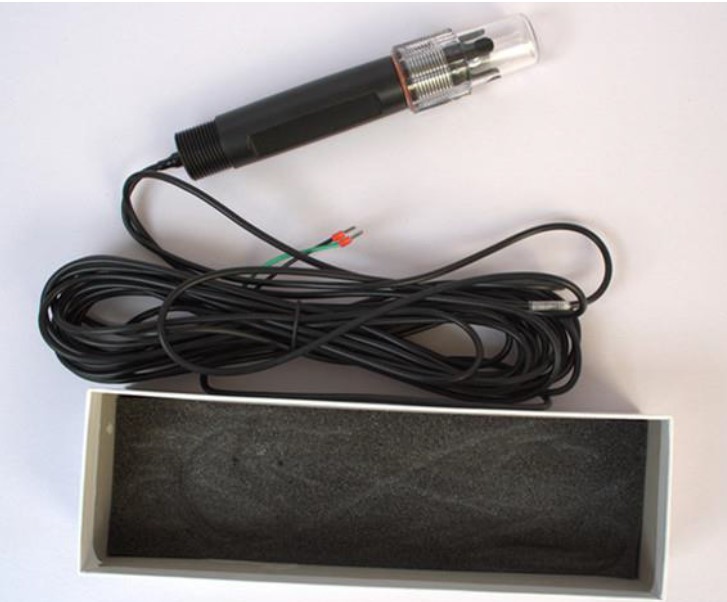

Two/ Three Composite pH electrode, ORP electrode, 3/4" NPT Thread

Calibration

4.01; 6.86; 9.18 Three Calibration

Display

Large LCD 128*64 Screen more parameters

Current output signal

Isolation 4~20mA Reversible Transferable

Control output signal

ON/OFF High, low limit relay

Communication output

Modbus RS 485, available as per request

Power

AC 220V±10%, 50/60Hz, DC24V

Working environment

Ambient Temp. 0~60ºC, Relative Humidity ≤85%

Overall dimensions

96×96×110mm (H X W X D), Hole dimension. 92×92mm (H X W)

Protection Grade

IP57

Installation Mode

Panel Mounted (Embedded)
