Description:

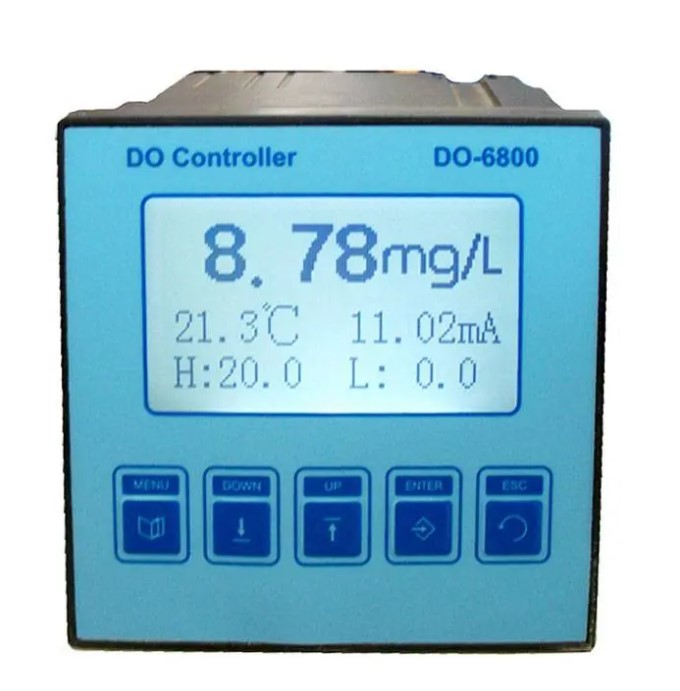

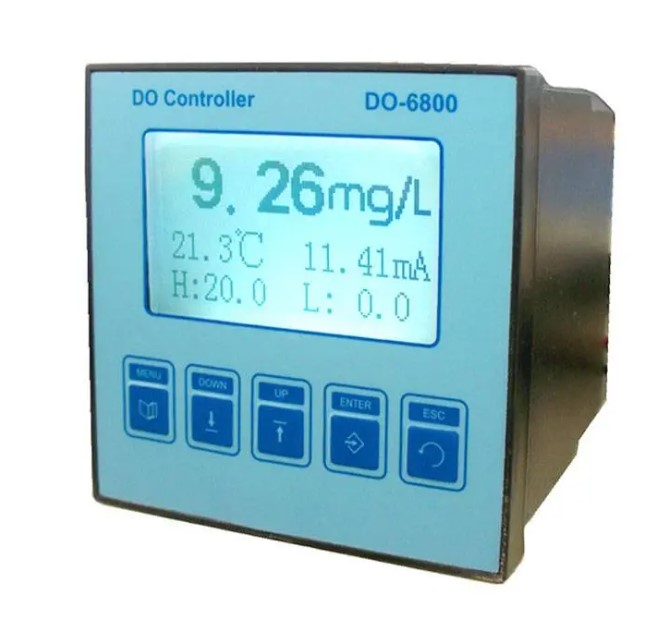

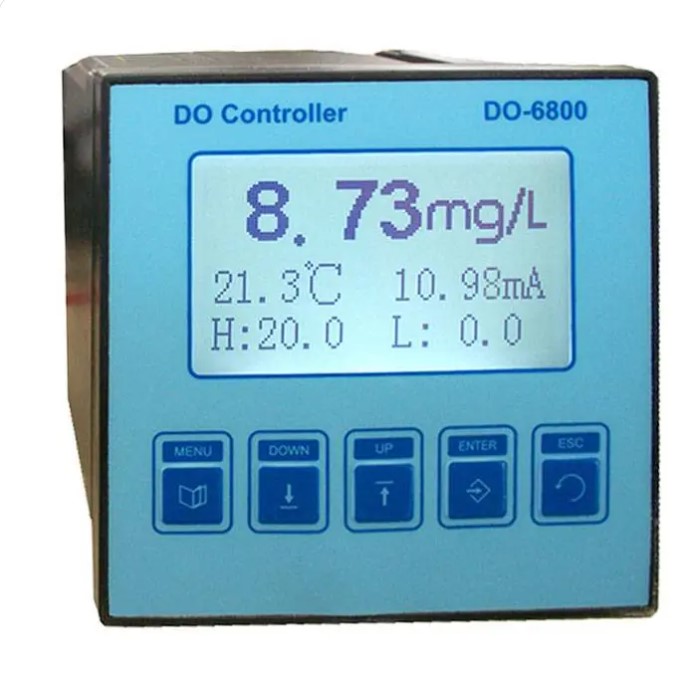

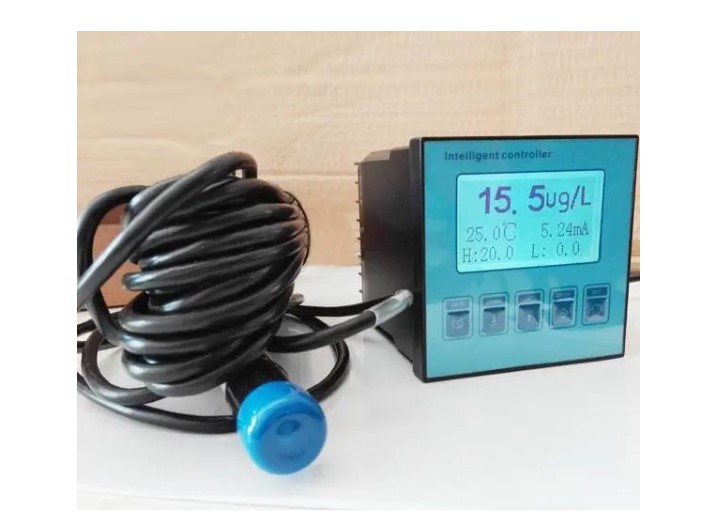

● DO-6800 online Dissolved Oxygen Temperature Transmitting Controller is a micro computerized precision instrument.
● The large LCD display, English menu operation.
● Multi-parameter display at the same time: the value of dissolved oxygen, temperature,
output current, alarm points, etc. Intuitive and easy to read, and alarm for range over run
● Screen displays alarm status and accompanied by a switch ON / OFF signal output
● Automatic Temperature Compensation: Automatic 0℃ to 60℃
● Communication function (optional): RS-485 communication interface (MODBUS protocol is partially compatible), 4 to 20 mA current output corresponding to the DO value can be set freely.
● Notepad: can store 50 measurements, the user can record measurement data.
● Hysteresis amount can be set freely to avoid frequent switching relay action
● Watchdog function: to ensure that the instrument will not crash
● Core devices from famous foreign brands
● Restore the factory settings. Power-down protection> 10 years
Main technique Specification:
0.00 – 20.00 mg /L , 0 – 200.0 ug /L, (optional) 0-60℃
NTC 10K, 0.0℃-60.0 ℃ Automatic temperature compensation
Current output

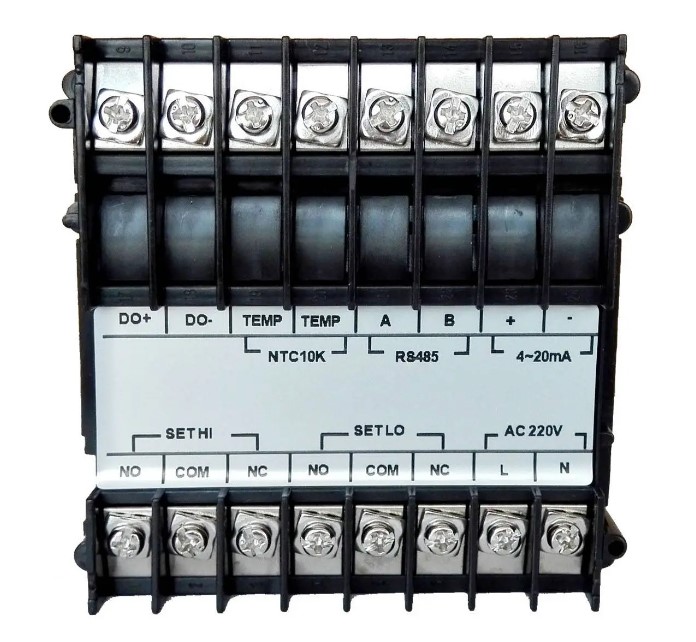

two sets of ON / OFF relay contacts, divided into the high point, low alarm signal, optically isolated output.
